Für Integratoren und Kunden, die die Ressourcen haben Touchscrceens im eigenen Haus zu verbauen, bieten wir eine Vielzahl verschiedener Touchscreen-Modelle an.
Touch International Corp. (USA)
Touch International ist weltweit einer der führenden Hersteller von kundenspezifischen Touchscreen Lösungen und Display Enhancements. Sowohl analog resistive Touchscreens als auch projektiv
kapazitive Touchscrceens werden für Anwendungen in der Industrie, Medizintechnik, Luftfahrt und Militär spezifikations- und normgerecht hergestellt.
AU Optronics Corp. (Taiwan)
AU Optronics gehört zu den Top 5 Display Herstellern und bietet Displays mit bereits montiertem Touchscreen Sensor von 4.3" - 32" an. Durch die breite Produktpalette, Qualität und eine
garantierte Langzeitverfügbarkeit ist AUO prädestiniert für Anwendungen in der Industrie.
AUO Displays ohne Touchscreen finden sie hier: Displays.
Ampire Corp. (Taiwan)

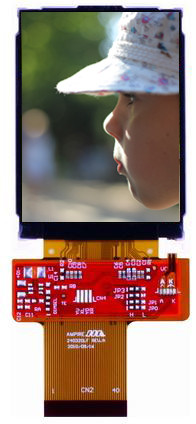

Als Display Hersteller mit Fokus auf kleine bis mittelgroße Displays (2.4'' - 15'') bietet Ampire auch eine umfangreiche Palette mit bereits montiertem Touchscreen an.
Ampire Displays ohne Touchscreen finden sie hier: Displays.
Größe |
Artikel-Nr. |
Touch Technologie |
Decor Glas* |
CoF* | Shield* | Active Area | Controller |
Display Auflösung |
Interface | cd/m² |
1.8'' | AE-160128DQFET | 4w; PCAP | 160*128 | MCU | 80 | |||||
3.5'' | AM320480COFET | 4w; PCAP | 320*480 | MCU/RGB | 200 | |||||
3.5'' | P3001-C20 | PCAP | CoF | 75.60 x 56.16 | CoF | - | - | - | ||
4.3'' | P3015-C20 | PCAP | CoF | 99.10 x 57.90 | CoF | - |
- |
- |
||
4.3'' | P3015-CG0 | PCAP | 1.1mm | CoF | 96.10 x 54.90 | CoF | - | - |
- |
|
4.3'' | AM480272Q Series | 4w; PCAP |
95.04 x 53.86 |
480*272 | MCU/RGB | 500 | ||||
4.3'' | G043FTT01.0 | 4w | CoF | 95.04 x 53.86 | 480*272 | RGB | 400 | |||
5.7'' | P3010-C20 | PCAP | CoF | 122.16 x 93.12 | CoF | - | - |
- |
||
5.7'' | G057QN/QTN Series |
4w |
115.20 x 86.40 |
320*240 | RGB | 500-800 | ||||
5.7'' | G057VTN Series |
4w |
115.20 x 86.40 |
640*480 | CMOS | 550 | ||||
6.5'' | AM640480N | 4w; PCAP | 640*480 | LVDS | 800 | |||||
6.5'' | P3011-C20 | PCAP | CoF | 139.08 x 105.96 | CoF | - | - | - | ||
6.5'' | G065VN01V2 |
4w |
132.48 x 99.36 |
640*480 | LVDS | 800 | ||||
7'' | P3012-C2A | PCAP | CoF | 159.60 x 97.44 | CoF | - |
- |
- |
||
7'' | P3012-CGA | PCAP | 1.1mm | CoF | 153.60 x 91.00 | CoF |
- |
- | - | |
7'' | P3012-02A | PCAP | Shield | 159.60 x 97.44 | PM1201A |
- |
- |
- |
||
7'' | G070VW Series |
4w |
152.40 x 91.44 |
800*480 | LVDS | 350 | ||||
7'' | G070VW Series | PCAP | 152.40 x 91.44 | 800*480 | LVDS | 350 | ||||
7'' | A070VW08 Series |
4w |
152.40 x 91.44 |
800*480 | RGB |
500 |
||||
7'' | A070VW08 Series | PCAP |
152.40 x 91.44 |
800*480 |
RGB |
500 | ||||
7'' | G070VTT01.0 | In-Cell |
152.40 x 91.44 |
800*480 | RGB |
360 |
||||
7'' | AM1024600E | 4w; PCAP | 1024*600 | LVDS | 350 | |||||
7'' | AM1024600G Series | 4w; PCAP | 1024*600 | LVDS | 300 | |||||
7'' | AM1024600K Series | 4w; PCAP | 1024*600 | LVDS | 500 | |||||
8.0'' | AM1024768J | 4w: PCAP | 1024*768 | LVDS | 300 | |||||
8.4'' | P3007-02A | PCAP | Shield | 178.40 x 135.80 | PM1300A, PM1302, PM1310 | - | - | - | ||
8.4'' | P3007-A2A | PCAP | 178.40 x 135.80 | PM1300A, PM1302, PM1310 | - |
- |
- |
|||
8.4'' | G084SN03V3 | resistive | 170.40 x 127.80 | 800*600 |
LVDS |
250 | ||||
8.4'' | G084SN05V9 |
4w |
170.40 x 127.80 | 800*600 | LVDS | 450 | ||||
9.0'' | AM8004480AH | 4w; PCAP | 800*480 | RGB | 500 | |||||
10.1'' | P3021-C2A | PCAP | CoF | 222.96 x 141.60 | CoF |
- |
- | - | ||
10.1'' | P3021-A2A | PCAP | 222.96 x 141.60 | PM1310 | - |
- |
- |
|||
10.1'' | A101VW01V3 |
4w |
219.60 x 131.76 | 800*480 | RGB | 300 | ||||
10.1'' | G101EVN01V0 | PCAP | 216.96 x 135.60 | 1280*800 |
LVDS |
300 | ||||
10.1'' | AM1280800N | 4w; PCAP | 1280*800 | LVDS | 350 | |||||
10.4'' | P3024-C20 | PCAP | CoF | 216.03 x 163.42 | CoF |
- |
- |
- | ||
10.4'' | P3008-02A | PCAP | Shield | 211.03 x 158.42 | PM1300A, PM1302, PM1310 | - | - | - | ||
10.4'' | P3008-0GA | PCAP | 1.8mm | Shield | 211.03 x 158.42 | PM1300A, PM1302, PM1310 | - |
- |
- | |
10.4'' | P3008-A2A | PCAP | 211.03 x 158.42 | PM1300A, PM1302, PM1310 | - |
- |
- | |||
10.4'' | P3008-AGA | PCAP | 1.1mm | 211.03 x 158.42 | PM1300A, PM1302, PM1310 | - | - |
- |
||
10.4'' | G104VN01V1 | resistive | 211.20 x 158.40 | 640*480 | LVDS | 450 | ||||
10.4'' | G104VN01V1 | PCAP |
211.20 x 158.40 |
640*480 | LVDS | 450 | ||||
10.4'' | G104SN02V2 |
4w |
211.20 x 158.40 | 800*600 | LVDS | 400 | ||||
10.4'' | G104SN02V2 |
5w |
211.20 x 158.40 |
800*600 | LVDS | 400 | ||||
10.4'' | G104SN02V2 | PCAP |
211.20 x 158.40 |
800*600 | LVDS | 400 | ||||
10.4'' | G104STN01V0 |
4w |
211.20 x 158.40 |
800*600 | LVDS | 400 | ||||
10.4'' | G104STN01V0 |
5w |
211.20 x 158.40 | 800*600 | LVDS | 400 | ||||
10.4'' | G104STN01V0 | PCAP |
211.20 x 158.40 |
800*600 | LVDS | 400 | ||||
10.4'' | G104SN03V5 |
4w |
211.20 x 158.40 |
800*600 | LVDS | 230 | ||||
10.4'' | G104SN03V5 |
5w |
211.20 x 158.40 | 800*600 | LVDS | 230 | ||||
10.4'' | G104SN03V5 | PCAP |
211.20 x 158.40 |
800*600 |
LVDS |
230 | ||||
10.4'' | G104XVN01V0 |
4w |
210.43 x 157.82 | 1024*768 |
LVDS |
470 | ||||
10.4'' | G104XVN01V0 |
5w |
210.43 x 157.82 |
1024*768 | LVDS | 470 | ||||
10.4'' | G104XVN01V0 | PCAP |
210.43 x 157.82 |
1024*768 | LVDS | 470 | ||||
12.1'' | P3009-02A | PCAP | Shield | 252.00 x 190.50 | PM1400A, PM1401 | - |
- |
- |
||
12.1'' | P3009-0GA | PCAP | 1.8mm | Shield | 246.00 x 184.50 | PM1400A, PM1401 |
- |
- |
- |
|
12.1'' | P3009-A2A | PCAP | 252.00 x 190.50 | PM1400A, PM1401 |
- |
- |
- |
|||
12.1'' | P3009-AGA | PCAP | 1.8mm | 246.00 x 184.50 | PM1400A, PM1401 |
- |
- | - | ||
12.1'' | P3026-A20 | PCAP | 252.00 x 190.50 | PM1410 |
- |
- | - | |||
12.1'' | P3014-020 | PCAP | Shield | 267.12 x 169.20 | PM1400A, PM1401 |
- |
- | - | ||
12.1'' | P3014-A20 | PCAP | 267.12 x 169.20 | PM1400A, PM1401 | - | - | - | |||
12.1'' | G121SN01V4 |
4w |
246.00 x 184.50 | 800*600 | LVDS | 450 | ||||
12.1'' | G121SN01V4 |
5w |
246.00 x 184.50 |
800*600 | LVDS | 450 | ||||
12.1'' | G121SN01V4 | PCAP | 246.00 x 184.50 | 800*600 | LVDS | 450 | ||||
12.1'' | G121STN01V0 |
4w |
246.00 x 184.50 | 800*600 | LVDS | 300 | ||||
12.1'' | G121STN01V0 |
5w |
246.00 x 184.50 | 800*600 | LVDS |
300 |
||||
12.1'' | G121STN01V0 | PCAP |
246.00 x 184.50 |
800*600 | LVDS |
300 |
||||
12.1'' | G121XN01V0 |
4w |
245.76 x 184.32 | 1024*768 |
LVDS |
500 | ||||
12.1'' | G121XN01V0 |
5w |
245.76 x 184.32 | 1024*768 | LVDS | 500 | ||||
12.1'' | G121XN01V0 | PCAP |
245.76 x 184.32 |
1024*768 | LVDS | 500 | ||||
12.1'' | G121XTN01V0 |
4w |
245.76 x 184.32 | 1024*768 | LVDS | 500 | ||||
12.1'' | G121XTN01V0 |
5w |
245.76 x 184.32 | 1024*768 | LVDS | 500 | ||||
12.1'' | G121XTN01V0 | PCAP |
245.76 x 184.32 |
1024*768 | LVDS | 500 | ||||
15'' | P3013-AGA | PCAP | 1.8mm | 304.10 x 228.10 | PM1400A, PM1401 | - | - | - | ||
15'' | P3013-02A | PCAP | Shield | 310.10 x 234.10 | PM1400A, PM1401 | - | - |
- |
||
15'' | P3013-A2A | PCAP | 310.10 x 234.10 | PM1400A, PM1401 | - | - |
- |
|||
15'' | G150XTN05V0 |
4w |
304.13 x 228.10 |
1024*768 |
LVDS |
1200 | ||||
15'' | G150XTN05V0 |
5w |
304.13 x 228.10 | 1024*768 |
LVDS |
1200 | ||||
15'' | G150XTN05V0 | PCAP | 304.13 x 228.10 | 1024*768 |
LVDS |
1200 | ||||
15'' | G150XG series |
4w |
304.13 x 228.10 | 1024*768 |
LVDS |
250-500 | ||||
15'' | G150XG series |
5w |
304.13 x 228.10 |
1024*768 | LVDS | 250-500 | ||||
15'' | G150XG series | PCAP |
304.13 x 228.10 |
1024*768 |
LVDS |
250-500 | ||||
15'' | G150XTN series |
4w |
304.13 x 228.10 |
1024*768 |
LVDS |
250-400 | ||||
15'' | G150XTN series |
5w |
304.13 x 228.10 |
1024*768 | LVDS | 250-400 | ||||
15'' | G150XTN series | PCAP |
304.13 x 228.10 |
1024*768 | LVDS | 250-400 | ||||
15'' | G150XVN series |
4w |
304.13 x 228.10 |
1024*768 |
LVDS |
300-500 | ||||
15'' | G150XVN series |
5w |
304.13 x 228.10 |
1024*768 |
LVDS |
300-500 | ||||
15'' | G150XVN series | PCAP | 304.13 x 228.10 | 1024*768 | LVDS | 300-500 | ||||
15.4'' | AM1024768Q | 5w; PCAP | 1024*768 | LVDS | 500 | |||||
15.4'' | AM1024768H1 | 5w; PCAP | 1024*768 | LVDS | 400 | |||||
15.6'' | P3016-0G0 | PCAP | 1.8mm | Shield | 344.23 x 193.54 | PM1500 | - | - |
- |
|
15.6'' | P3016-A20 | PCAP | 350.23 x 199.54 | PM1500 | - | - |
- |
|||
15.6'' | P3016-020 | PCAP | Shield | 350.23 x 199.54 | PM1500 | - | - | - | ||
15.6'' | G156XW series | PCAP |
344.23 x 193.54 |
1366*768 | LVDS |
400 |
||||
17'' | G170EG series |
5w |
337.92 x 270.34 | 1280*1024 |
LVDS |
350 | ||||
17'' | G170EG series | PCAP |
337.92 x 270.34 |
1280*1024 | LVDS | 350 | ||||
17'' | G170ETN series |
5w |
337.92 x 270.34 | 1280*1024 | LVDS | 350 | ||||
17'' | G170ETN series | PCAP |
337.92 x 270.34 |
1280*1024 | LVDS | 350 | ||||
18.5'' | P3019-A20 | PCAP | 413.60 x 234.20 | PM1710 | - | - |
- |
|||
18.5'' | G185XW series | PCAP |
409.80 x 230.40 |
1366*768 | LVDS |
400 |
||||
19'' | G190EG series |
5w |
376.32 x 301.06 | 1280*1024 | LVDS | 300 | ||||
19'' | G190EG series | PCAP |
376.32 x 301.06 |
1280*1024 | LVDS | 300 | ||||
19'' | M190EG series |
5w |
376.32 x 301.06 |
1280*1024 | LVDS | 250 | ||||
19'' | M190EG series | PCAP | 376.32 x 301.06 | 1280*1024 | LVDS | 250 | ||||
19'' | G190ETN series |
5w |
376.32 x 301.06 |
1280*1024 | LVDS | 1000 | ||||
19'' | G190ETN series | PCAP |
376.32 x 301.06 |
1280*1024 | LVDS | 1000 | ||||
21.5'' | P3022-A20 | PCAP | 483.20 x 274.70 | PM1710 | - | - | - | |||
21.5'' | M215 /T215 series | PCAP |
476.64 x 267.96 |
1920*1080 | LVDS | 200 | ||||
21.5'' | G215HVN series | PCAP |
476.64 x 268.11 |
1920*1080 | LVDS | 250 | ||||
24'' | P3025-A20 | PCAP | 537.36 x 304.89 | PM1710 | - | - |
- |
|||
24'' | G240HW series | PCAP |
531.36 x 298.89 |
1920*1080 | LVDS | 300 | ||||
32'' | P320HVN series | PCAP |
698.40 x 392.85 |
1920*1080 | LVDS | 1000 |
Wir beschaffen für Sie Ihre Wunschmarke direkt aus dem Herstellerland
Für unsere Kunden, die einen bestimmten Hersteller bevorzugen oder bereits einsetzen, jedoch keine Bezugsquelle haben oder den Lieferanten wechseln möchten, beschaffen wir Touchscreen Komponenten
vieler namhafter Hersteller direkt aus dem Herstellerland.
Detaillierte Produktberatung von Experten: +49 (0) 6081 / 4468629 |
![]() |
